Lithium Iron Phospahte 1280Wh 12V 100Ah LiFePO4 Battery 5000 Cycles
12 Volts Lithium Iron Phospahte 12.8V 100Ah LiFePO4 Battery Pack
Product Description
1. Lithium iron phosphate battery is environmental protection: the battery is generally considered to contain no heavy metals and rare metals (nickel-hydrogen batteries contain), non-toxic, non-polluting, in line with European RoHS regulations, is an absolute green battery approved by RoHS.
2. Lithium iron phosphate battery is with high efficiency output: standard discharge 2~5 C, continuous high current discharge up to 10 C, instantaneous pulse discharge (10 S) up to 20C.
3. Lithium iron phosphate battery is with long life span: The life span of lifepo4 battery is relatively long, whose cycle times can reach more than 3000-5000, with more than 6 years life span.
Nominal Voltage | 12.8V |
Nominal Capacity | 100Ah |
Energy | 1280Wh |
Internal Resistance | ≤10mΩ |
Cycle Life | >3000 cycles@1C 100% DOD |
Months Self Discharge | <3% |
Efficiency of Charge | 100%@0.5C |
Efficiency of Discharge | 96-99% @1C |
Charge Cut-off Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 24.6V, then 14.6V charge current to 0.02C(CC/CV) |
Recommend Charge Current | 50A |
Max. Charge Current | 100A |
Max. Continuous Discharge Current | 100A |
Max. Pulse Current | 250A(10S) |
Discharge Cut-off Voltage | 10V |
Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
Water Dust Resistance | IP54 |
Cell&Method | 4S |
Package | ABS Plastic Case |
Dimensions(in./mm.) | 329*173*214mm |
Weight(lbs./kg.) | 14.7kg |

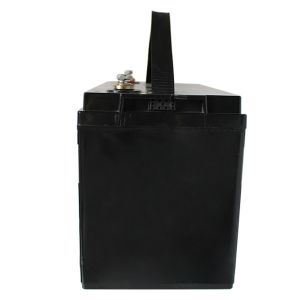

Product Images
Application of LiFePO4 Battery
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
⇒Electric drill, electric saw, lawn mower and so on
⇒Remote control cars, boat, aircraft, toys
⇒Medical devices, equipment and portable equipment
⇒Bluetooth, GPS, Wearable device, Power supply, Wireless
Company Information
Shenzhen Elite New Energy Co., Ltd is a leading battery manufacturer in China, which is committed to provide customers with safe and durable green energy products, including EV power battery systems, portable energy storage, household energy storage, micro power grid, battery solutions for telecom station power supply, UPS, solar street lights, and battery packs for police car, harvesters, AGV, forklift, balance vehicles, electric tricycles, electric wheelchairs, etc.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Warning & Tips
1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
2. When the battery run out of power, please charge it within 15 days；
3. Please use the original or recommended charger for this battery;
4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
5. Do not use the battery when there exist abnormal conditions such as odour, discoloration, noise, leakage, serious deformation, etc.
6. Please far away from children or pets.
